| MOQ: | 50 pcs |
| Price: | 3.11usd/pcs |
| Standard Packaging: | Blister individually, 100pcs/ carton |
| Delivery Period: | 20-35 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | 500000pcs/month |
Medical inline suction catheter 40cm 72h Connector Ventilator trach suction catheters
1.The product is made of high quality medical PVC.
2.Soft Blue tip design reduces irritation and damage to the tracheal mucosa.
3.The product uses several closed designs and additional cleaning function. It can effectively avoid the risk of caregiver being infected by the air exhaled by the patient during the treatment process.
4.In clinical use, the flushing port with a one-way valve design to prevent liquid reflux after flushing.
5.This design makes the Closed Suction Catheter tube more convenient, safety and easier to operate by caregiver.
6.The black indicator line indicates the position of the withdrawal suction tube to avoid the ETT airway block.
7.Closed Suction Catheter should be free of sensitization and mucosal irritation, the Cytotoxicity is not more than level 2. The products will 8.Sterilization by EO.
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Black | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 10Fr (3.35mm) | 600mm | YL-721060 |
| White | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 12Fr (4.05mm) | 600mm | YL-721260 |
| Green | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 14Fr (4.75mm) | 600mm | YL-721460 |
| orange | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 16Fr (5.45mm) | 600mm | YL-721660 |

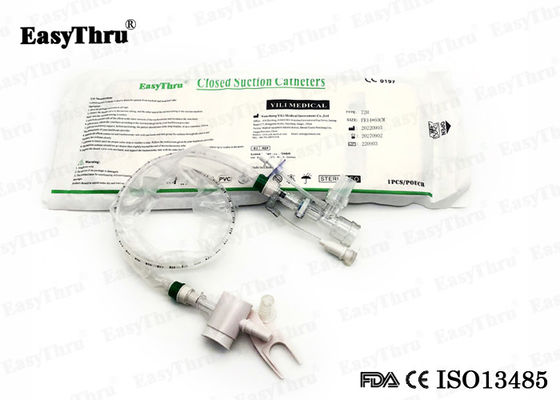

Product photo:
Structural differences between closed suction catheter and open PVC suction tubes
1. The open ordinary sputum suction tube has a simple structure and is composed of two parts: the suction tube and the machine end connector. It is easy to operate and is currently the main method of suction used in clinical practice.
2. A closed suction catheter consists of three parts: the patient end, the suction tube body, and the machine end. The patient end is connected to artificial airway and mechanical ventilation, and can also complete medication injection operations; The suction tube body is composed of a suction tube and a plastic film, which isolates the pipeline from the outside world; The machine end is connected to the suction machine end to complete negative pressure operation, which is currently a recommended sputum suction method in clinical practice.
Video
Video
Video
Video
Video
|
|
| MOQ: | 50 pcs |
| Price: | 3.11usd/pcs |
| Standard Packaging: | Blister individually, 100pcs/ carton |
| Delivery Period: | 20-35 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | 500000pcs/month |
Medical inline suction catheter 40cm 72h Connector Ventilator trach suction catheters
1.The product is made of high quality medical PVC.
2.Soft Blue tip design reduces irritation and damage to the tracheal mucosa.
3.The product uses several closed designs and additional cleaning function. It can effectively avoid the risk of caregiver being infected by the air exhaled by the patient during the treatment process.
4.In clinical use, the flushing port with a one-way valve design to prevent liquid reflux after flushing.
5.This design makes the Closed Suction Catheter tube more convenient, safety and easier to operate by caregiver.
6.The black indicator line indicates the position of the withdrawal suction tube to avoid the ETT airway block.
7.Closed Suction Catheter should be free of sensitization and mucosal irritation, the Cytotoxicity is not more than level 2. The products will 8.Sterilization by EO.
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Black | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 10Fr (3.35mm) | 600mm | YL-721060 |
| White | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 12Fr (4.05mm) | 600mm | YL-721260 |
| Green | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 14Fr (4.75mm) | 600mm | YL-721460 |
| orange | Adult/72H/Endotracheal | Push Switch & Luer Lock Type Tracheostomy, Flex Tube | 16Fr (5.45mm) | 600mm | YL-721660 |
Product photo:
Structural differences between closed suction catheter and open PVC suction tubes
1. The open ordinary sputum suction tube has a simple structure and is composed of two parts: the suction tube and the machine end connector. It is easy to operate and is currently the main method of suction used in clinical practice.
2. A closed suction catheter consists of three parts: the patient end, the suction tube body, and the machine end. The patient end is connected to artificial airway and mechanical ventilation, and can also complete medication injection operations; The suction tube body is composed of a suction tube and a plastic film, which isolates the pipeline from the outside world; The machine end is connected to the suction machine end to complete negative pressure operation, which is currently a recommended sputum suction method in clinical practice.
